ASROCK Z490 PRO4

 13,399.00

Out of stock

icon

Free Delivery

icon

Safe Payment

icon

Shop with Confidence

icon

24/7 Help Center

Description

Supports 10th Gen Intel® Core™ processors (Socket 1200)

10 Power Phase Design

Supports DDR4 4400MHz+ (OC)

2 PCIe 3.0 x16, 3 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi

AMD Quad CrossFireX™ and CrossFireX™

Graphics Output Options: HDMI, D-Sub

7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio

6 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)

2 USB 3.2 Gen2 (Rear Type-A+C), 6 USB 3.2 Gen1 (4 Front, 2 Rear)

Intel® Gigabit LAN

Specifications

Unique Feature ASRock USB 3.2 Gen2
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High-Density Glass Fabric PCB
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU Supports 10th Gen Intel® Core™ Processors (Socket 1200)
– Digi Power design
– 10 Power Phase design
– Supports Intel® Turbo Boost Max 3.0 Technology
– Supports Intel® K-Series unlocked CPUs
– Supports ASRock BCLK Full-range Overclocking
Chipset – Intel® Z490
Memory – Dual-Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– Supports DDR4 4400+(OC)* / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. the capacity of system memory: 128GB**
– Supports Intel® Extreme Memory Profile (XMP) 2.0
– 15μ Gold Contact in DIMM Slots

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for the system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake-up events
– SMBIOS 2.7 Support
– CPU Core/Cache, GT, DRAM, PCH, VCCIO, VCCST, VCCSA Voltage Multi-adjustmentGraphics- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
– Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
– Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD Blu-ray Disc
– Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.3 with HDMI 1.4 Port
– Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**VP9 10bit and VC-1 are for decode only.
VP8 and VP9 encode are not supported by Windows® OS.Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– PCB Isolate Shielding
– Individual PCB Layers for R/L Audio Channel
– Nahimic AudioLAN- Gigabit LAN 10/100/1000 Mb/s
– Giga PHY Intel® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXESlots- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4)*
– 3 x PCI Express 3.0 x1 Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)

*Supports NVMe SSD as boot disksStorage- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI, and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
– 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.

**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 KitConnector- 1 x COM Port Header
– 1 x SPI TPM Header
– 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

****The CPU/Water Pump Fan supports the water cooler fan of a maximum of 2A (24W) fan power.

*****The Chassis/Water Pump Fan supports the water cooler fan of a maximum of 2A (24W) fan power.

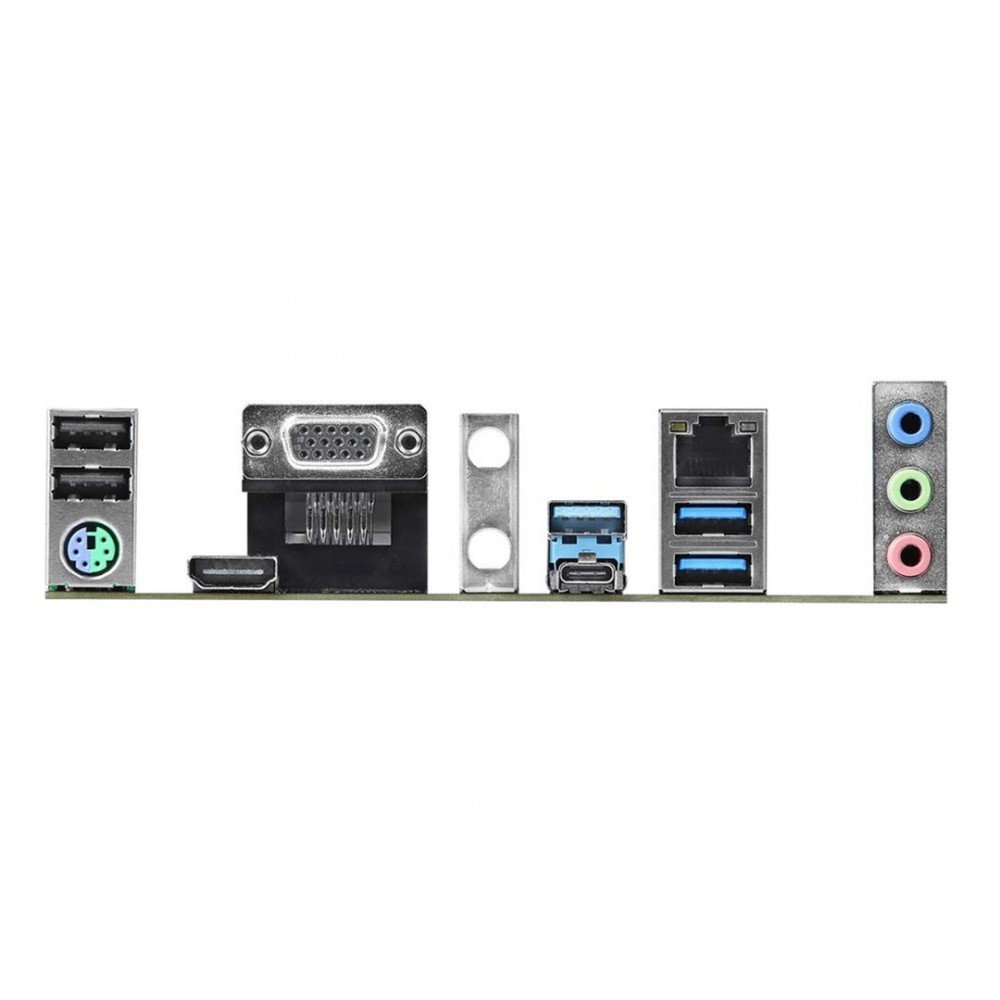

CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O- 2 x Antenna Mounting Points
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 2 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFISoftware
– ASRock Motherboard Utility (A-Tuning)
– ASRock Polychrome SYNC
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID InstallerSupport CD- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarAccessories- Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 3 x Screws for M.2 Sockets
– 1 x Standoff for M.2 SocketHardware MonitorTemperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust the chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST, VCCIOForm Factor- ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm
– Solid Capacitor designOSMicrosoft® Windows® 10 64-bitCertifications- FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)Warranty3 Years

Brand

ASROCK
