Description

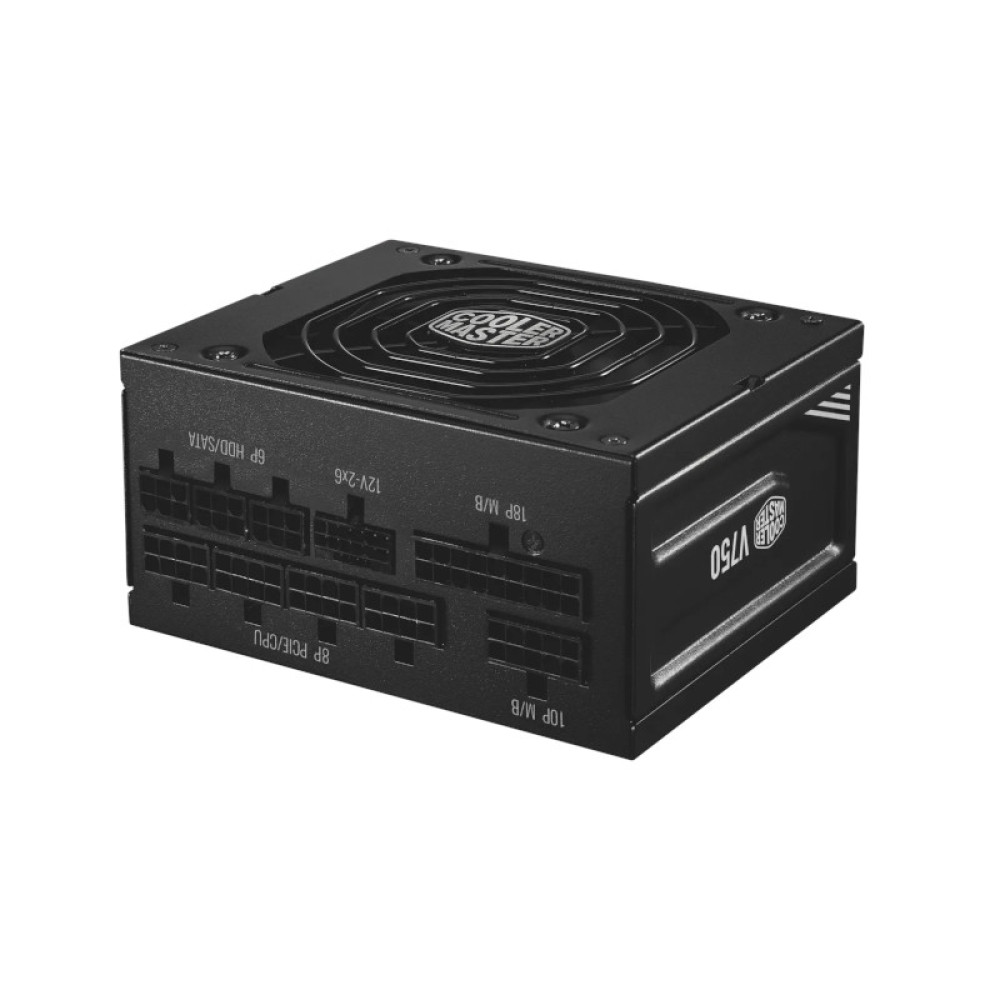

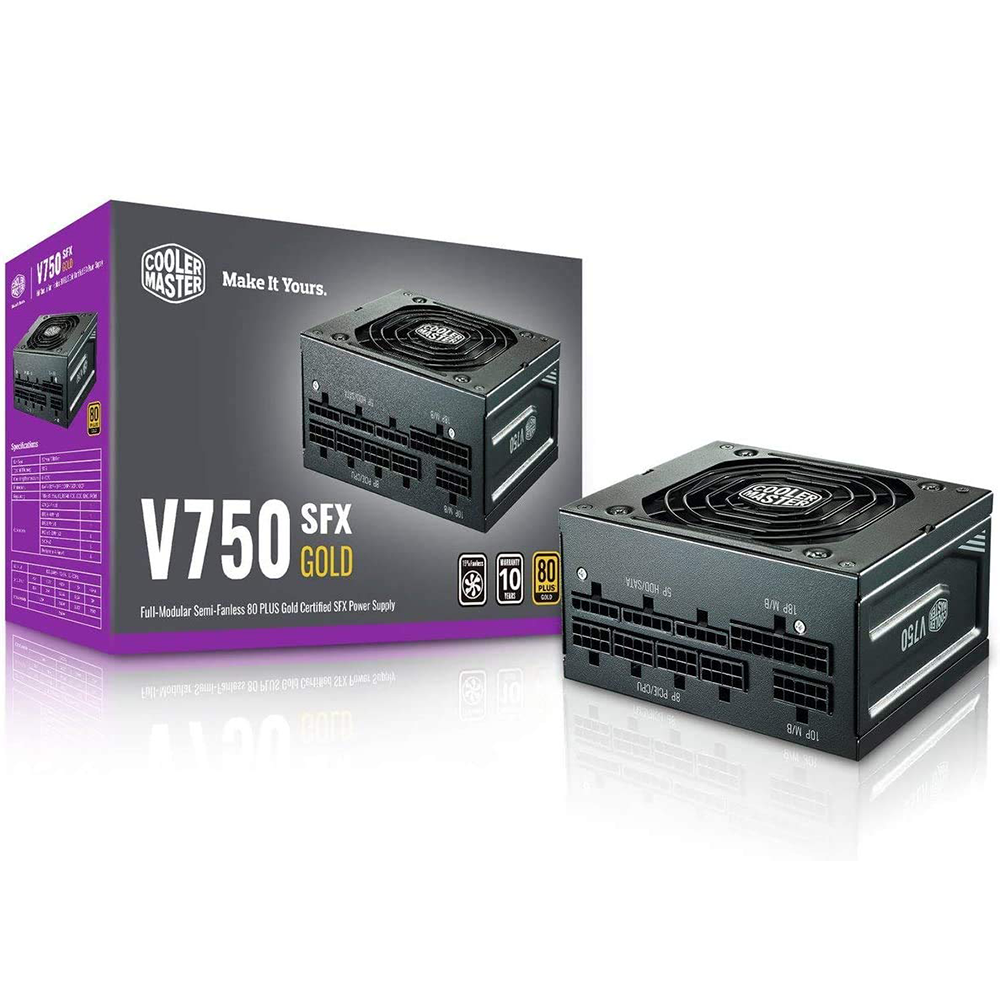

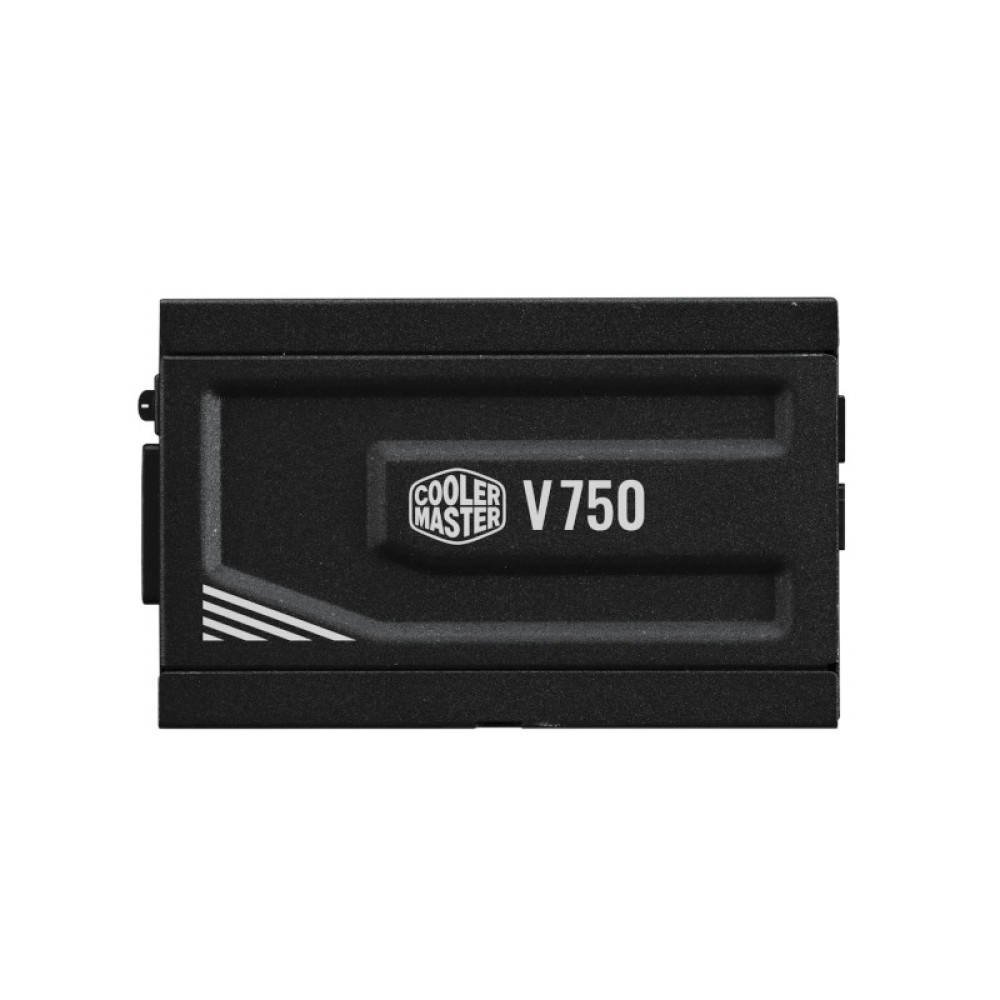

COOLER MASTER SFX GOLD V750 ATX 3.1 FULLY MODULAR SMPS
- Flexible compatibility
- ATX 3.1 support & a 90-degree 12V-2×6 cable
- 80 PLUS Gold certified
- Fully modular cabling
- 100% Japanese capacitors
- 10-year Warranty
SPECIFICATION
| Product Name | V SFX Gold 750 ATX 3.1 |
| MODEL | MPY-7501-SFHAGV-3EIN |
| ATX VERSION | ATX3.1 & SFX 12V Ver. 3.42 |
| PFC | Active PFC |
| INPUT VOLTAGE | 100-240V |
| INPUT CURRENT | 10-5A |
| INPUT FREQUENCY | 50-60Hz |
| DIMENSIONS (L X W X H) | 100 x 125 x 63.5mm |
| FAN SIZE | 92mm |
| FAN BEARING | FDB |
| EFFICIENCY | 90% @ Typical Load |
| 80 PLUS RATING | 80 PLUS Gold |
| ERP 2014 LOT 3 | Yes |
| OPERATING TEMPERATURE | 0~50°C |
| POWER GOOD SIGNAL | 100-500ms |
| HOLD UP TIME | 16ms |
| MTBF | >100,000 hours |
| PROTECTIONS | OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection |
| REGULATORY | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, CB, UKCA |
| Connectors |
|
| Net Weight | 1.42 kg |
| Gross Weight | 1.86 kg |
| Package Dimensions | 260 x 190 x 100mm (10.24 x 7.48 x 3.94″) |
| Warranty | 10 Years |
