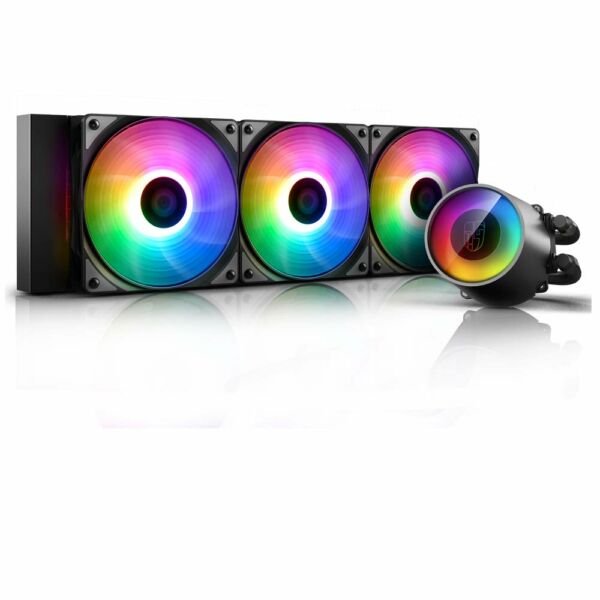

CPU LIQUID COOLER – Castle 360RGB V2
Anti-leak Tech Inside liquid cooling system equipped.
Double window panes and immersive ambient lighting ready to provide a perfect display of aesthetic illumination.
16.7 M true color RGB flowing light system with 5 in-built effects and 36 interchangeable lighting modes.
Motherboard and controller Addressable RGB SYNC control supported*
Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
The ceramic axle bearings and axle cores guarantee an ultra-long service life.
Supports mainstream INTEL and AMD socket mounting, including TR4/AM4.
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.
|Fan Power Consumption||2.04 W|
|Material||Radiator Material = Aluminum|
|Pump Rated Current||0.21 A, Pump Power Consumption = 2.52 W|
|LED Type||Addressable RGB LED|
|Tube Length||465 mm|
|Pump Speed||2550 RPM±10%|
|Fan Dimension||120×120×25 mm|
|Fan Speed||500~1800 RPM±10%|
|LED Rated Voltage||5 VDC|
|Fan Airflow||69.34 CFM|
|LED Power Consumption||2.25 W（PUMP）/ 7.2 W（FAN×3）|
|Fan Air Pressure||2.42 mmAq|
|Fan Noise Level (dB-A)||≤30 dB(A), Fan Connector = 4-pin PWM|
|Bearing Type||Hydro Bearing|
|Dimension||Pump Dimensions = 91×79×71 mm, Radiator Dimensions = 402×120×27 mm|
|Fan Rated Current||0.17 A|
|Power Consumption||LED Type = Addressable RGB LED, LED Connector = 3-pin(+5V-D-G), LED Rated Voltage = 5 VDC, LED Power Consumption = 2.25 W（PUMP）/ 7.2 W（FAN×3）|
|Pump Noise||17.8 dB(A)|
|Pump Rated Voltage||12 VDC|
