Description

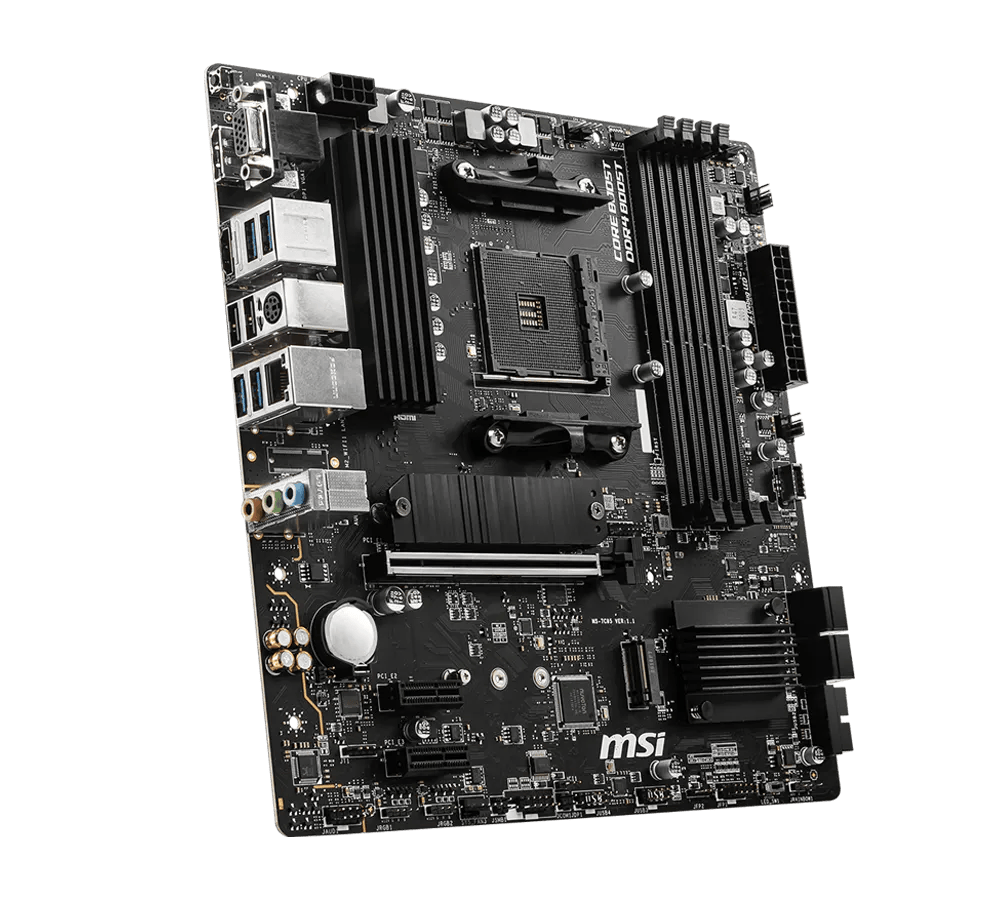

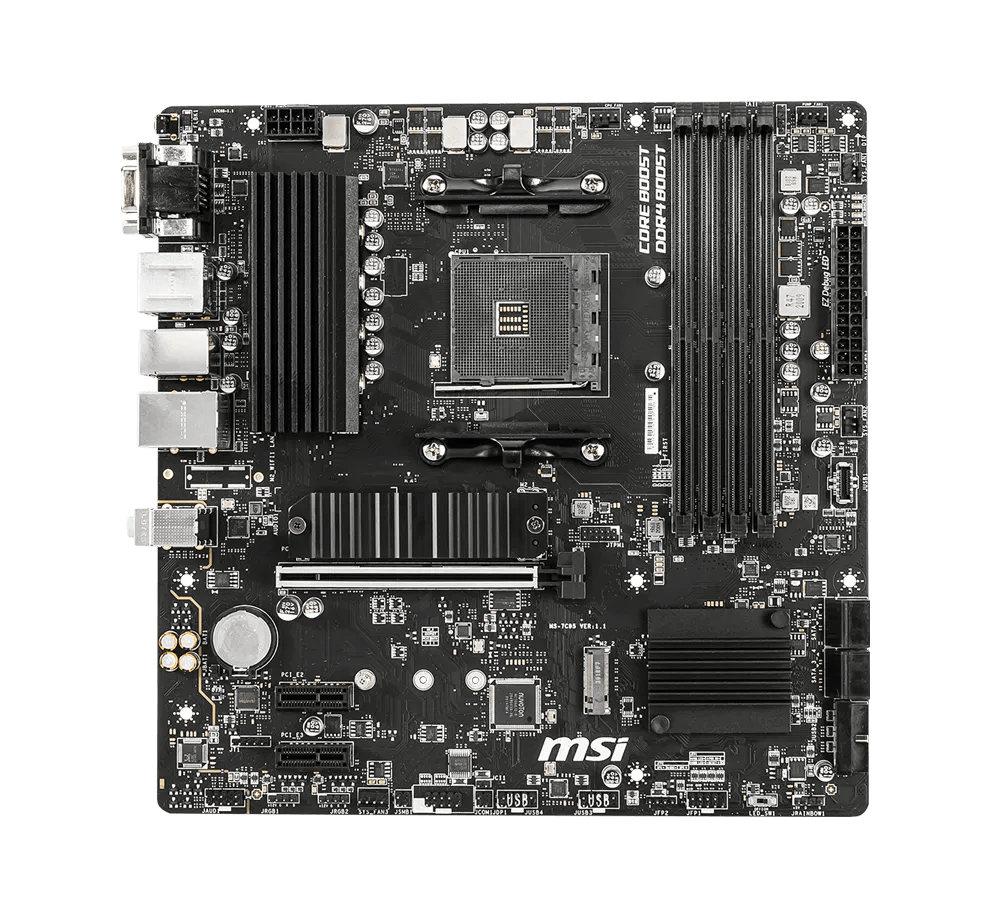

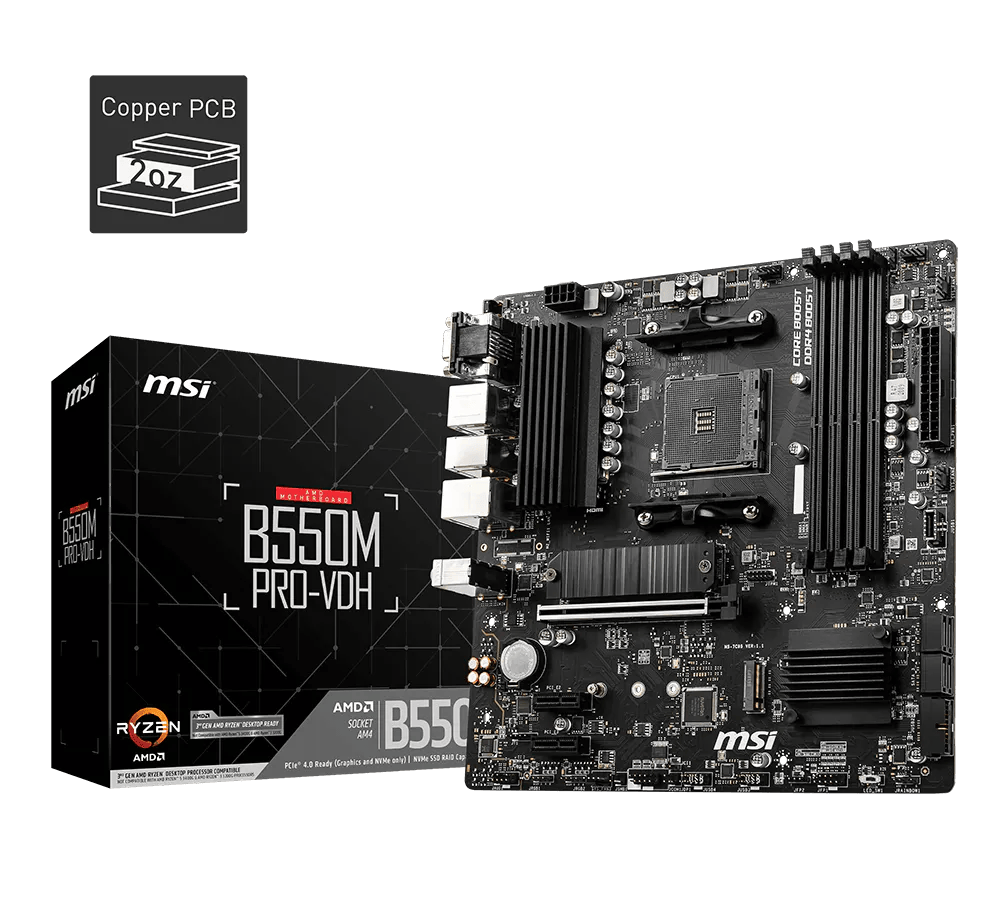

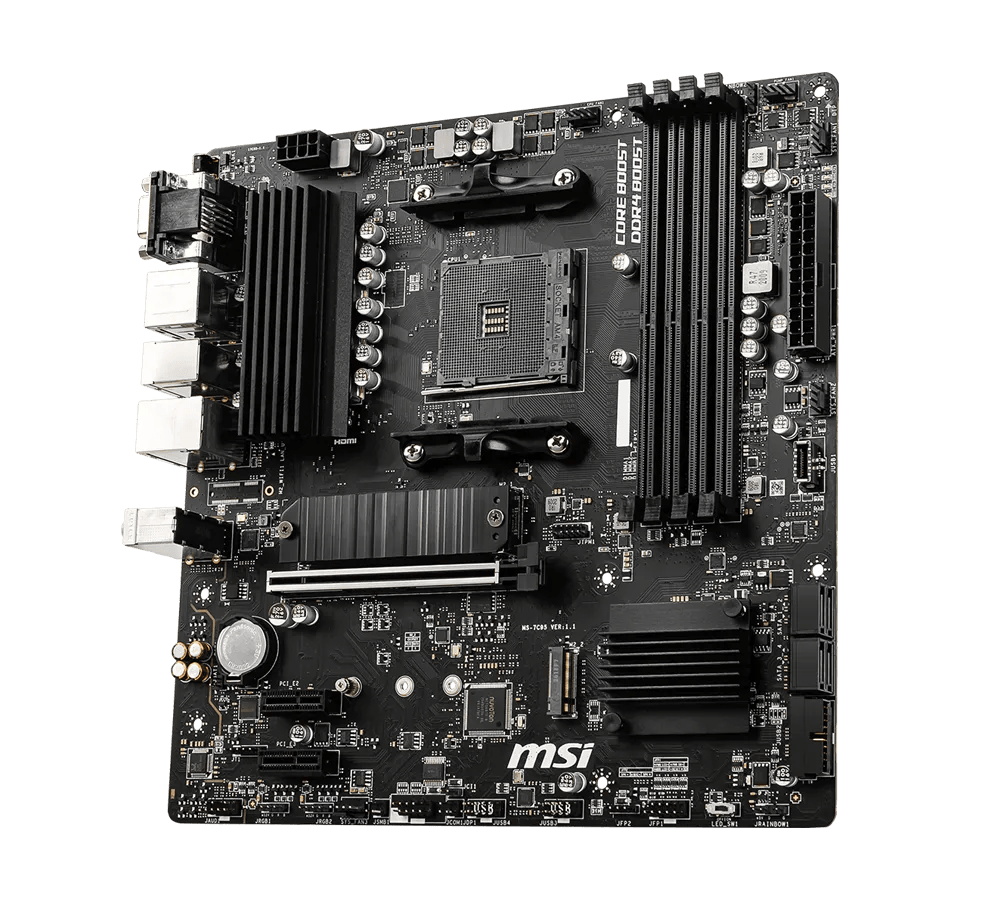

AMD B550 (Ryzen AM4) micro-ATX motherboard with M.2 support, MSI B550M PRO-VDH is equipped with DDR4 4400MHz, M.2 Slot, USB 3.2 Gen 1 port Type C, SATA 6 Gbps
Description
· Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
· Supports DDR4 Memory, up to 4400(OC) MHz
· Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
· Premium Thermal Solution: 7W/mK pad, additional choke thermal pad, and M.2 Shield Frozr are built for high-performance system and non-stop works
· Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
· Audio Boost: Reward your ears with studio grade sound quality
· Dragon Center: A brand new software that integrates all MSI exclusive tools with a user-friendly user interface.
Specifications
| CPU | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
| Chipset | AMD B550 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Dual-channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
| Expansion Slot | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
2x PCIe 3.0 x1 slots The supported specification depends on the installed processor. |
| Onboard Graphics | 1x VGA port, supports resolution of 2048×1536 @50Hz, 2048×1280 @60Hz, 1920×1200 @60Hz
1x DisplayPort supports a maximum resolution of 4096×2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz Maximum shared memory of 16 GB Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage | AMD B550 Chipset
4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0×4 Supports 2242/ 2260/ 2280 storage devices The supported specification depends on the installed processor. |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
| Audio | Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio |
| LAN | 1x Realtek® 8111HN Gigabit LAN controller |
| Internal connectors | 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper |

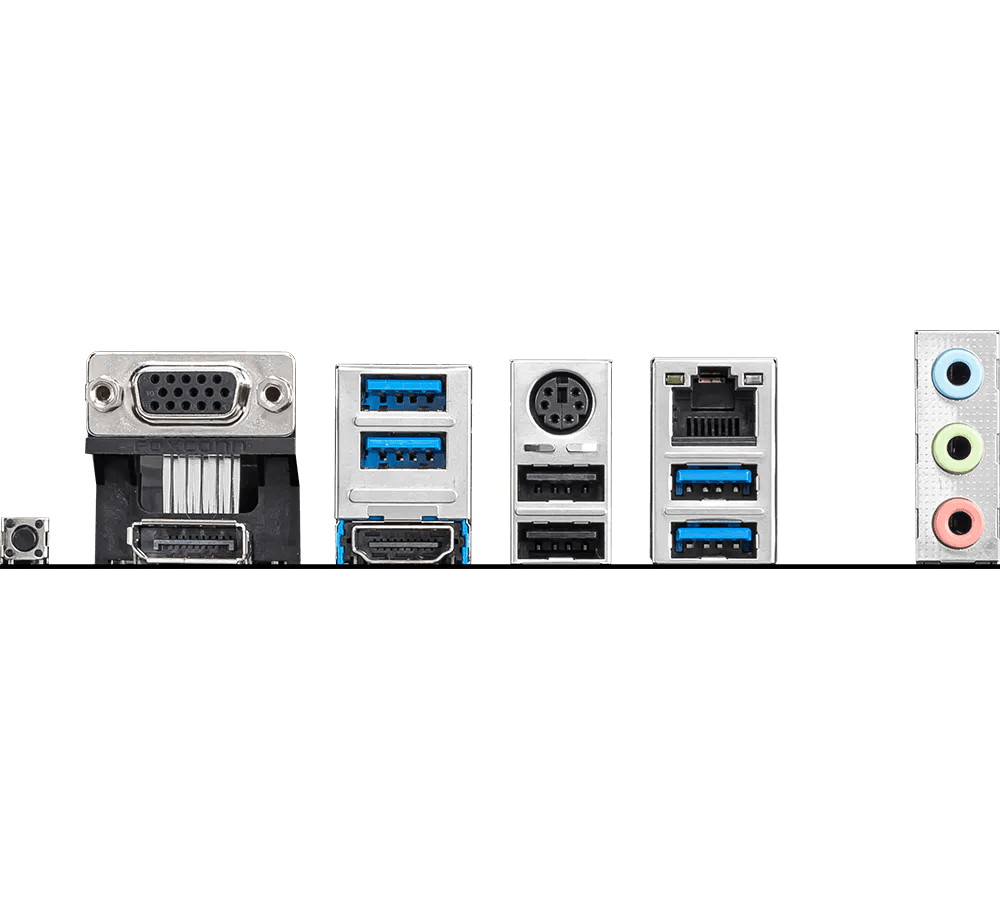

| Back panel ports | VGA
USB 3.2 Gen 1 5Gbps Type-A Keyboard / Mouse LAN Clear CMOS Button DisplayPort HDMI USB 2.0 USB 3.2 Gen 1 5Gbps Type-A HD Audio Connectors |
| Dimensions | Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| MOUNTING | 8 mounting holes |
| Warranty | 3 Years |
