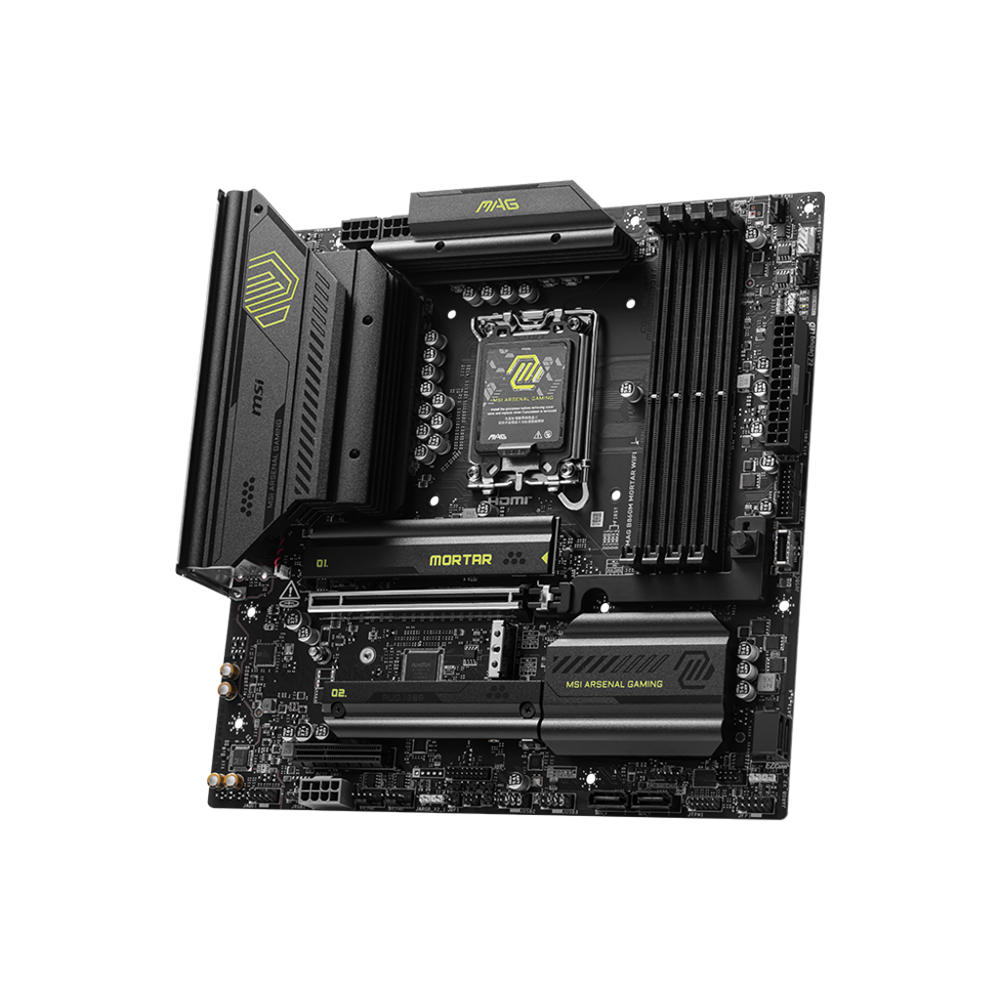

MSI MAG B860M MORTAR M-ATX WIFI DDR5 MOTHERBOARD

₹ 39,999.00 ₹ 21,950.00 Save 45%

You saved: ₹ 18,049.00

1 in stock

Buy Now
Add to wishlist
SKU: MAG-B860M-MORTAR-WIFI-7-DDR5
Categories: , ,
icon

Free Delivery

icon

Safe Payment

icon

Shop with Confidence

icon

24/7 Help Center

Description

MSI MAG B860M MORTAR M-ATX WIFI DDR5 MOTHERBOARD



  • Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
  • Ultra Performance: 12+1+1+1 Duet Rail Power System 60A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: Thunderbolt 4 port, Intel Killer 5G LAN & Intel Killer Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost : Reward your ears with studio grade sound quality for the most immersive gaming experience

MAG B860M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it’s ready for the battlefied of Intel Core Ultra processors.



SPECIFICATION



Platform INTEL
Socket LGA1851
Cpu Type Core Ultra
Chipset B860
Memory Speed up to 9200+
Max Memory Support 256 GB
Supported Memory Type DDR5
Channel Supported Dual Channel
Memory Feature
  • Supports Intel POR Speed and JEDEC Speed
  • Supports Memory Overclocking and Intel XMP 3.0
  • Supports Dual-Controller Dual-Channel mode
  • Supports Non-ECC, Un-buffered memory
  • Supports CUDIMM
Graphics Port
  • 1x HDMI
  • Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz*/ **
  • 1x DisplayPort
  • Support DisplayPort 1.4, maximum resolution of 4K 60Hz*/ **
  • 1x Type-C DisplayPort

Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics.
** Graphics specifications may vary depending on the CPU installed.
Expansion Slots
  • 1x PCI-E x16 slot
  • 1x PCI-E x4 slot
  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
  • PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Wireless Networking WiFi 7,Bluetooth 5.4
Back Panel I/O Ports
  • DisplayPort
  • USB 2.0
  • USB 10Gbps Type-A
  • 5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • HDMI
  • Thunderbolt 4 40Gbps (Type-C)
  • Flash BIOS Button
  • Clear CMOS Button
  • USB 10Gbps Type-C
  • USB 10Gbps Type-A
  • S/PDIF-OUT
Internal I/O Connector
  • 1x Thunderbolt5 card connector(JTBT5, support RTD3)
  • 1x Power Connector(ATX_PWR)
  • 2x Power Connector(CPU_PWR)
  • 1x Power Connector(PCIE_PWR 8pin)
  • 1x CPU Fan
  • 1x Combo Fan (Pump_Sys Fan)
  • 4x System Fan
  • 1x EZ Conn-header (JAF_1)
  • 2x Front Panel (JFP)
  • 1x Chassis Intrusion (JCI)
  • 1x Front Audio (JAUD)
  • 1x Tuning Controller connector(JDASH)
  • 3x Addressable V2 RGB LED connector (JARGB_V2)
  • 1x RGB LED connector(JRGB)
  • 1x TPM pin header(Support TPM 2.0)
  • 4x USB 2.0 ports
  • 2x USB 5Gbps Type A ports
  • 1x USB 10Gbps Type C ports
Form Factor Micro-ATX
Warranty 3 Years

Brand

MSI
