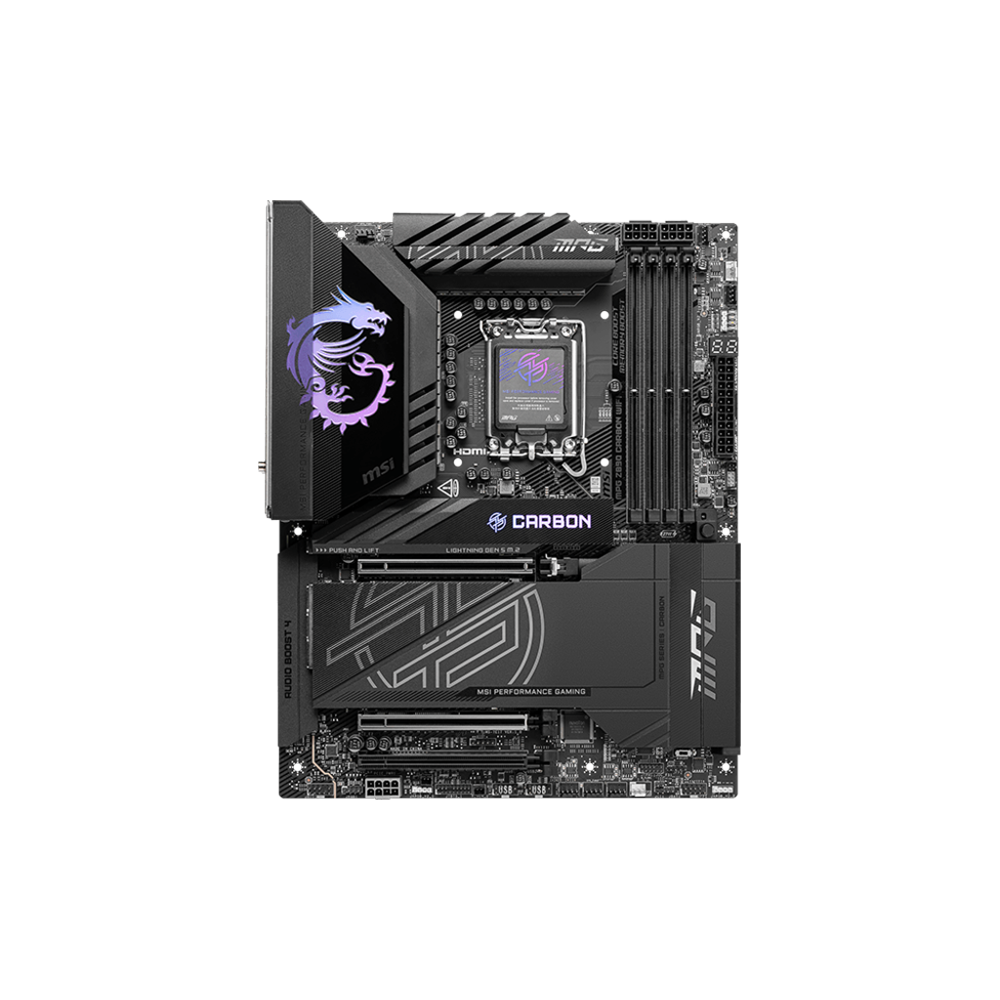

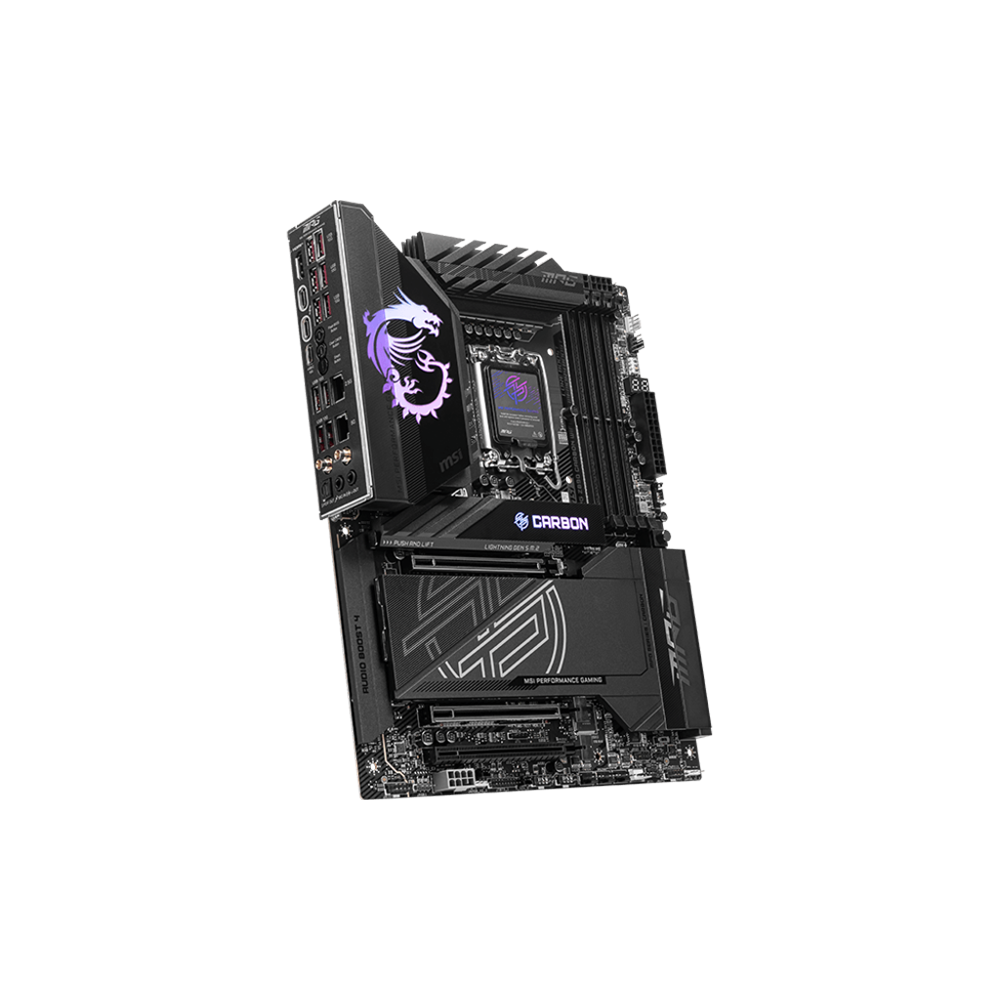

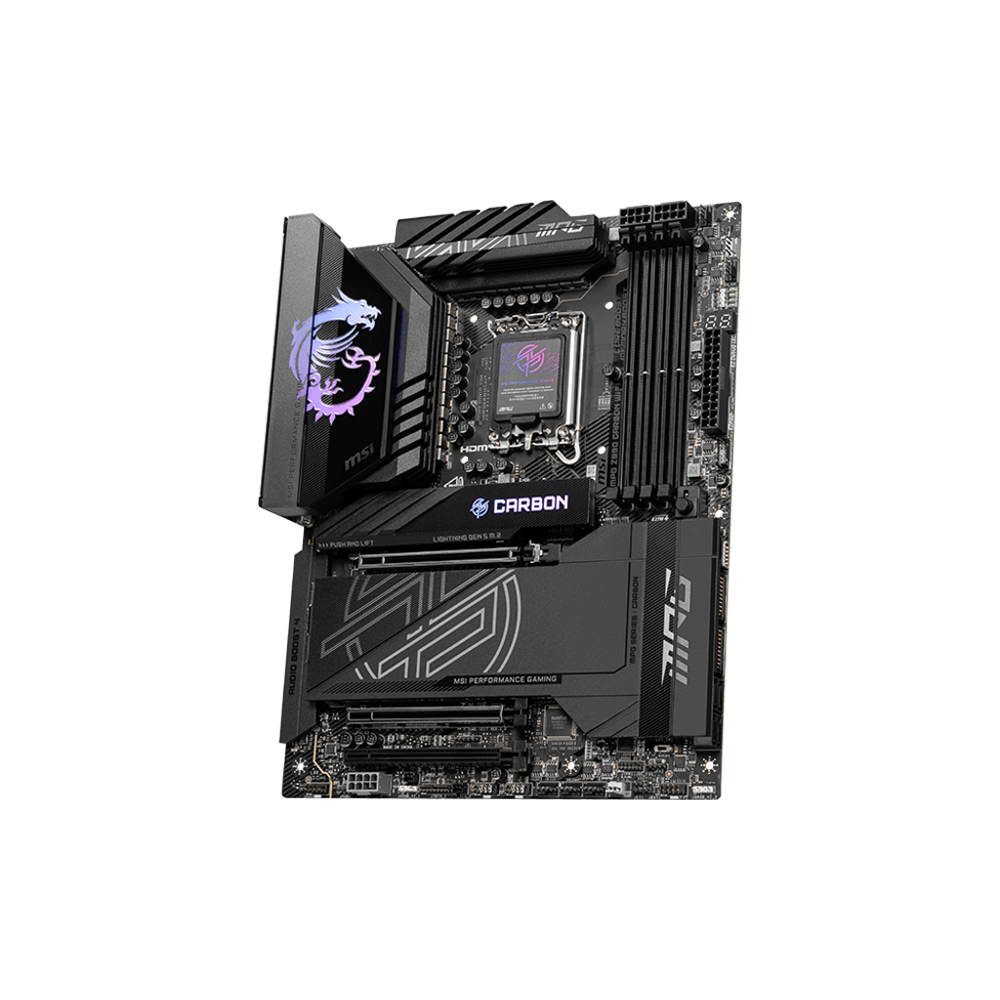

MSI MPG Z890 CARBON WIFI DDR5 MOTHERBOARD

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel POR Speed and JEDEC Speed

Supports Memory Overclocking and Intel XMP 3.0

Supports Dual-Controller Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM

The DIMM slots on this motherboard have single-sided latches.

Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*

2x Type-C DisplayPort

ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• 3x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 supports BIOS adjustment to x8+x4+x4*
• PCI_E2 supports BIOS adjustment to x4+x4*

• Realtek® ALC1220P Codec
• 7.1-Channel USB High Defination Audio
• Supports S/PDIF output

• 5x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
• M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
  4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.

• 2x Thunderbolt4 ports (Rear)
• Supports up to 40Gbps transfer rate with Thunderbolt devices
• Supports up to 20Gbps transfer rate with USB4 devices
• Supports up to 10Gbps transfer rate with USB 3.2 devices
• Supports up to 5V/3A,15W power charging
• Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
• Supports up to 8K display

• 4x USB 2.0 (Front)
• 4x USB 5Gbps Type A (Front)
• 10x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)

*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

• 1x Intel® Killer E5000B 5G LAN
• 1x Intel® I226V 2.5G LAN

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x Front Type-C Quick Charge Connector(PD_PWR1)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 5x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Water Flow connector
• 1x Front Audio (JAUD)
• 1x Thermal Sensor connectors(T_SEN)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 20Gbps Type C ports

• Intel® Killer BE1750x Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

• 4x EZ Debug LED
• 1x EZ Digit Debug LED

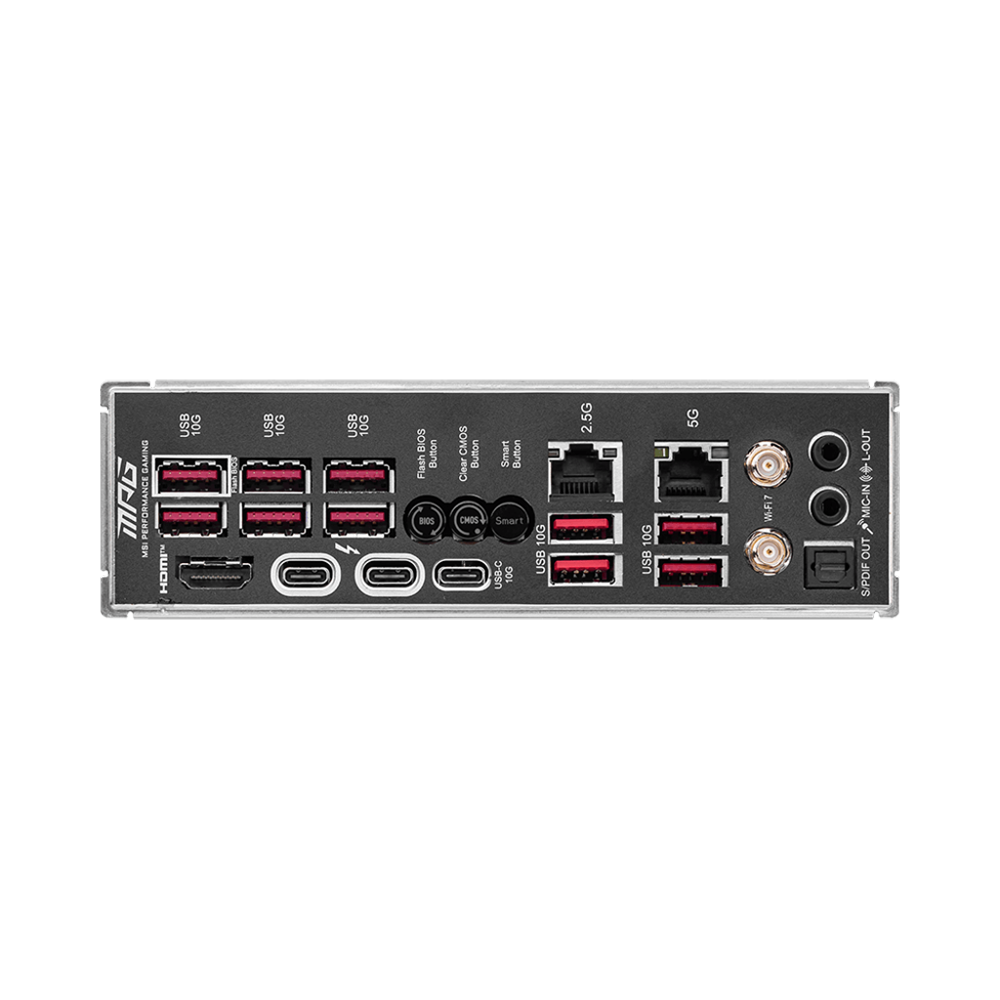

• USB 10Gbps Type-A
• Flash BIOS Button
• Clear CMOS Button
• Smart Button
• 2.5G LAN
• 5G LAN
• Audio Connectors
• HDMI™
• Thunderbolt 4
• USB 10Gbps Type-C
• USB 10Gbps Type-A
• Wi-Fi / Bluetooth
• Optical S/PDIF Out

• Europeon Union Regulatory Notice
• QuicK installation Guide
• Cable Sticker
• Shout out flyer
• EZ Wi-Fi Antenna
• EZ M.2 Clip ll
• EZ M.2 Clip ll Remover
• 1 to 3 EZ Conn-Cable(V2)
• USB Drive
• 4xSATA Cables
• ARGB Extension Cable
• 1to2 RGB Extension cable
• EZ Front panel cable
• M.2 Screw and Standoff Set
• 2 x Thermistor Cables

243.84mmx304.8mm
