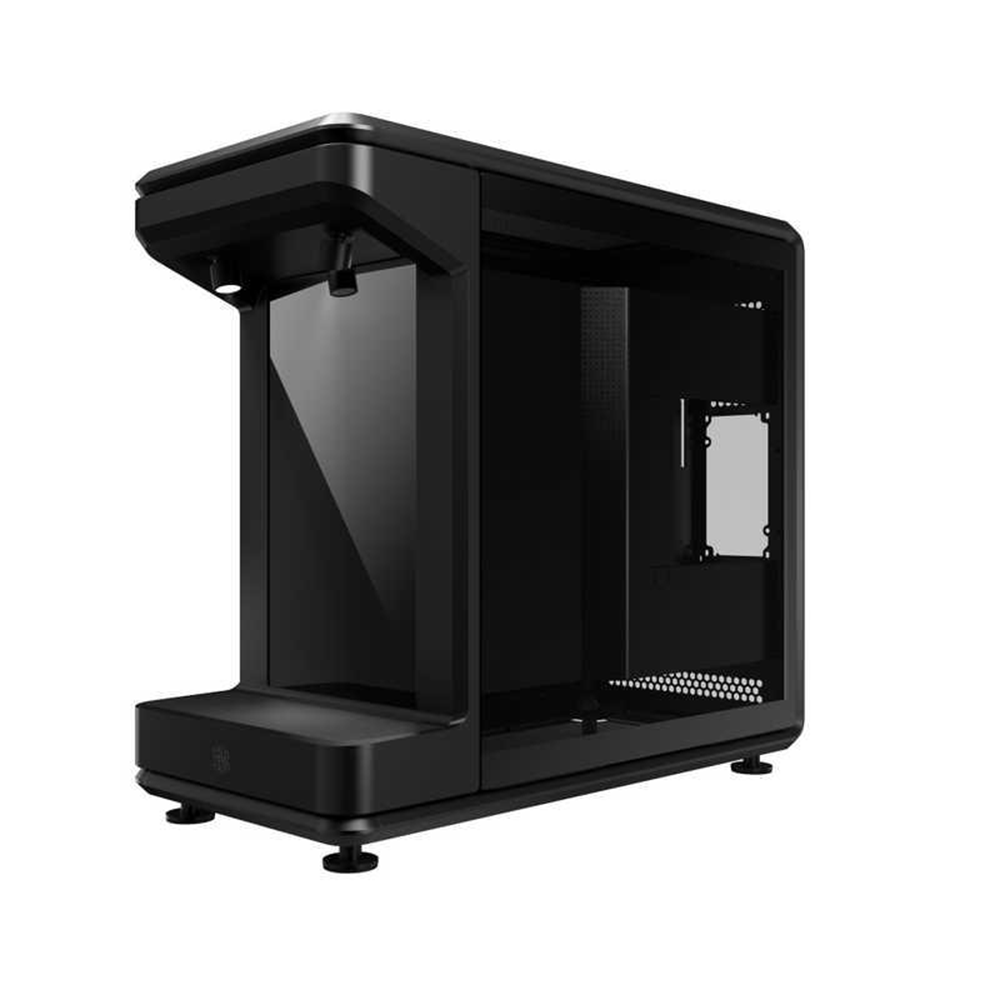

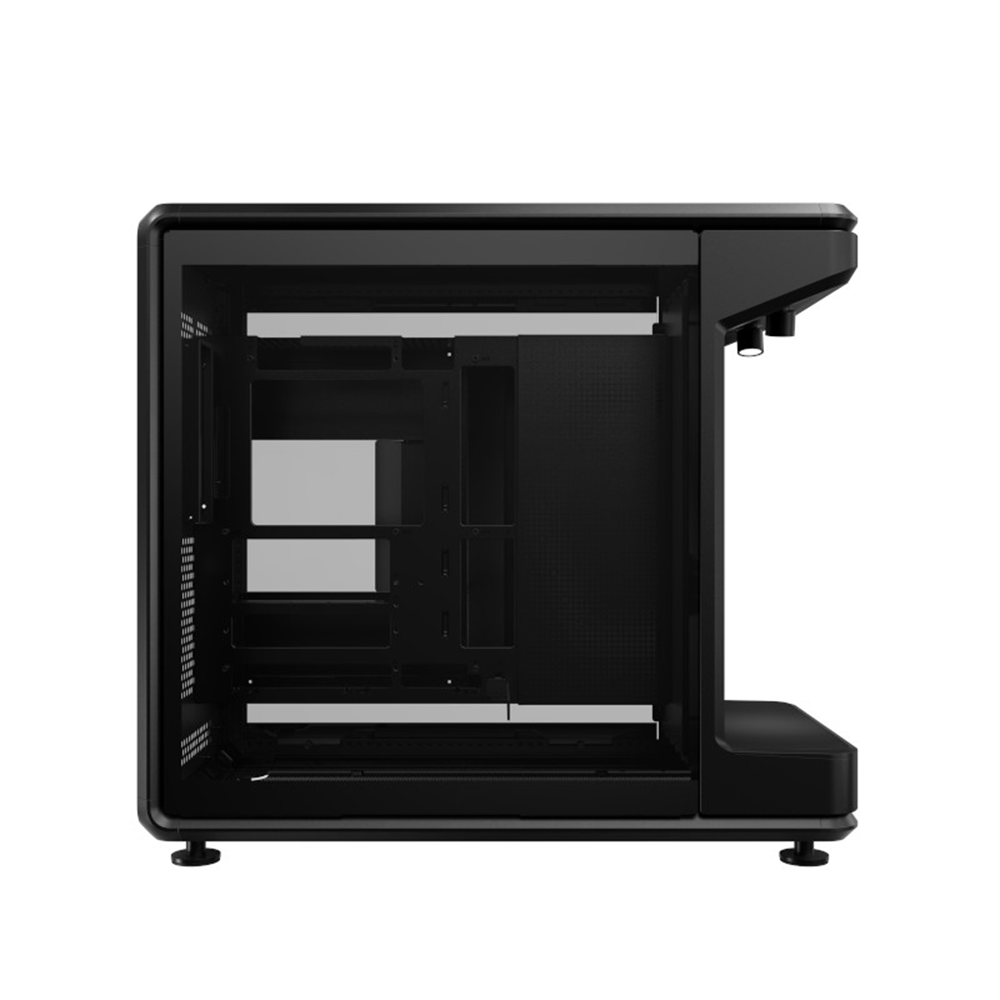

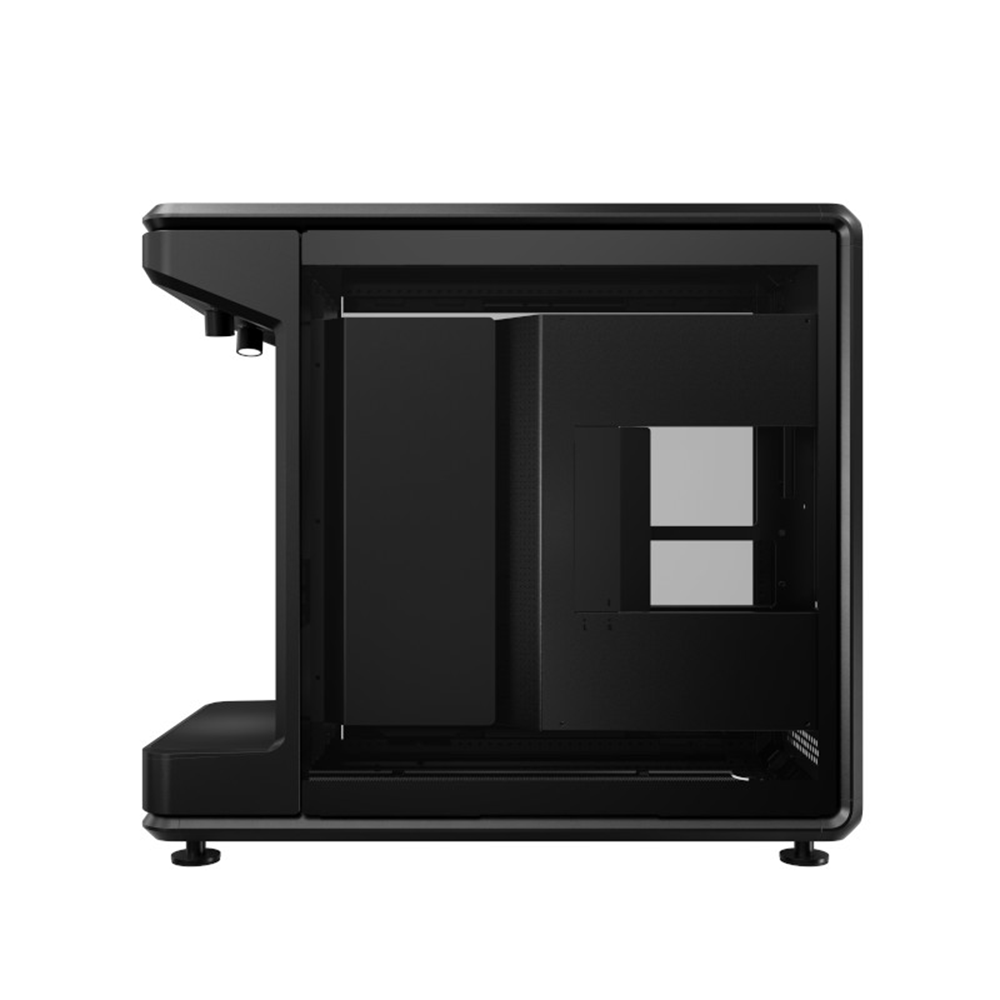

COOLER MASTER MASTERFRAME 360 STAGE LCD ATX MID TOWER CASE

Description

COOLER MASTER MASTERFRAME 360 STAGE LCD ATX MID TOWER CASE

• Dimensions (L x W x H): 549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)
• Volume: 86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)
• Power Supply Support: ATX
• Drive bay support – 3.5″ Drive Bays: 0
• Drive bay support – 2.5″ / 3.5″ Drive Bays (or SSD): 1x HDD or 2x SSD
• Preinstalled Drive bay – 3.5″ Drive Bay (remark Toolfree quantity) / 2.5″ Drive Bay(or SSD)(remark Toolfree quantity): 1x HDD or 2x SSD
• Fan Support – Top: 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm
• Fan Support – Bottom: 6x 120mm, 2x 140mm,  2x 180mm, 2x 200mm
• Radiator Support – Top: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)
• Radiator Support – Bottom: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)​
• Dust Filters: Mesh Only (Removable Filters)
• Other electronic components: 1x PCI-e 5.0 Riser / 2x ARGB spotlight
• Maximum Dimensions for Front Collectibles Display (H x W x D): 328 x 290 x 110 mm
• Toolbox: Yes
• Cable Routing – Behind Motherboard Tray: 110 mm

SHOWCASE WITHOUT COMPROMISE

Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master’s signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. STAGE LCD-the 360 series offers creators a refined platform to build, express, and be seen.​

The Stage for Personal Expression

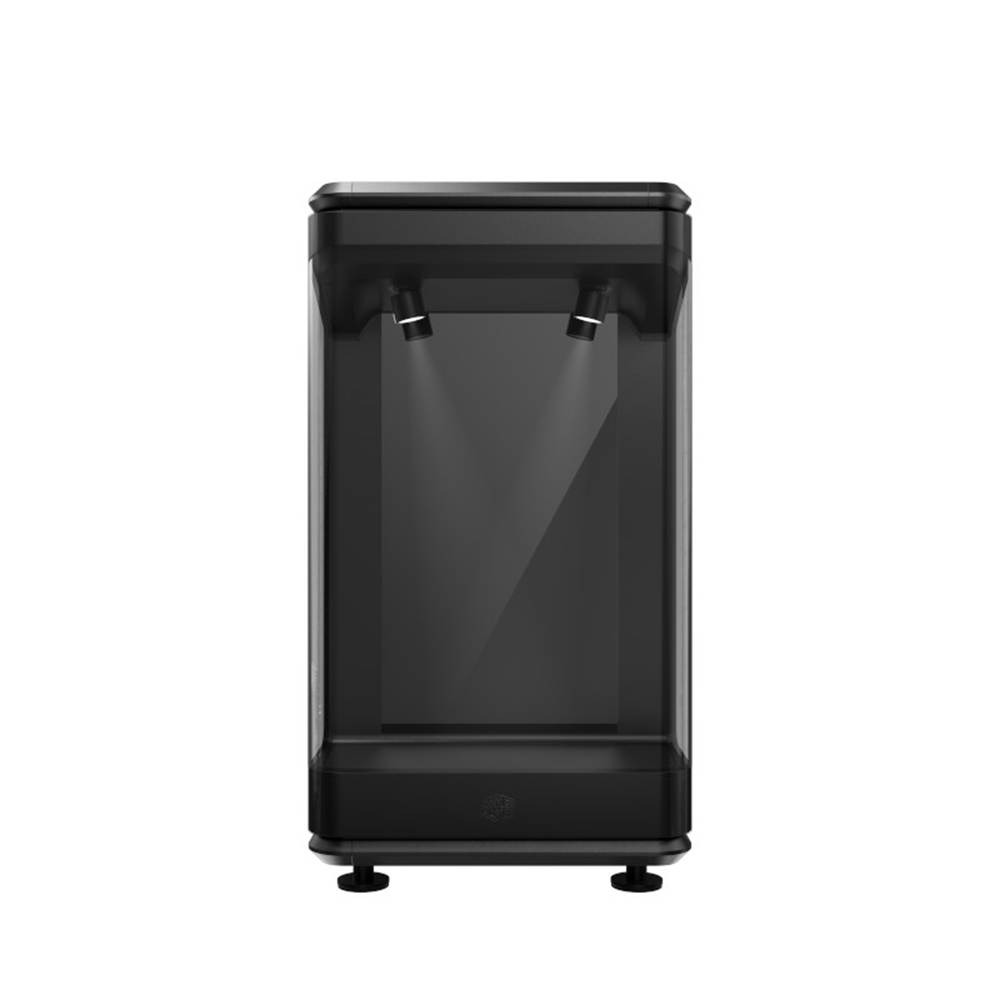

Open-frame design removes traditional enclosure constraints, allowing you to freely position figures, collectibles, and creative accessories without visual or spatial limits.​ Combined with the signature front-facing LCD, it creates a 360-degree display effect—reflecting every angle in vivid detail. This unique design transforms your build into a personal gallery, where story and style take center stage.​

Massive Cooling Compatibility

Supports fan sizes ranging from 120 mm to 200 mm, with space for up to twelve 120 mm fans-six on the top and six on the bottom. It also supports radiators up to 360 mm, meeting the cooling demands of high-end custom liquid cooling setups.

Wide Component Compatibility ​

Accommodates up to 430 mm GPUs and 210 mm PSUs built to handle flagship components without compromise.​ Also compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including BTF (back-connect) layouts within the ATX form factor.​

PCIe 5.0 Riser Cable Included

Includes a premium PCIe 5.0 riser cable that enables vertical GPU mounting providing both next-gen performance and an elevated presentation right out of the box.

SPECIFICATION
