Description

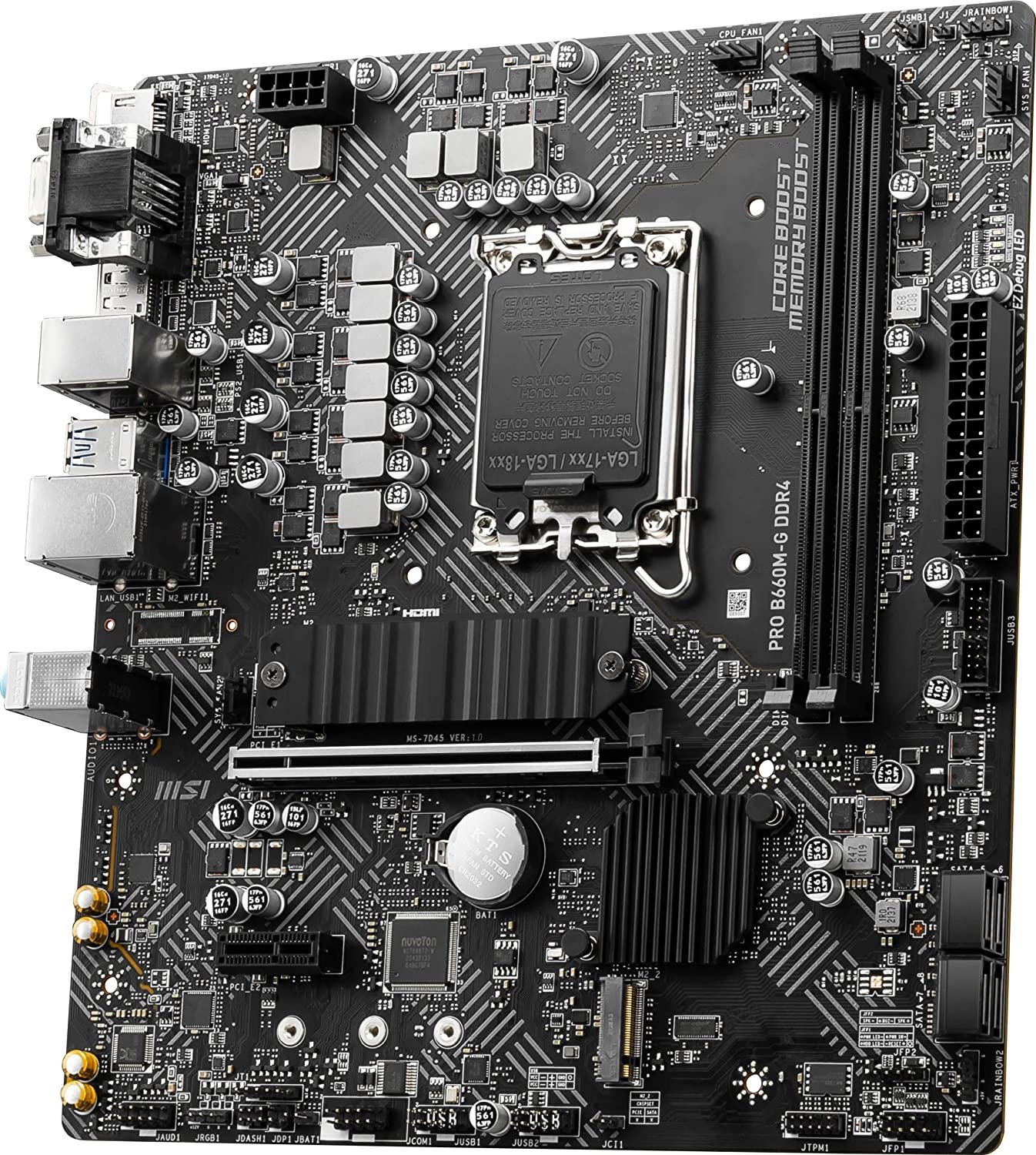

MSI PRO B660M-G-DDR4
- 12TH GEN CORE READY – The PRO B660M-G DDR4 is a compact micro-ATX motherboard outfitted with the latest Intel B660 chipset (LGA 1700, 12th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & performance
- GEN4 GPU SLOT, DUAL DIMMS – A PCIe 4.0 x16 slot (with steel frame) supports state-of-the-art graphics cards; Dual DIMMs with dual-channel DDR4 architecture support up to 64 GB of SDRAM (4600MHz/OC)
- DUAL GEN4 M.2 CONNECTORS – Storage includes 2 x M.2 Gen4 x4 64Gb/s slots (the second slot support Intel Optane supported) with Shield Frozr to prevent thermal throttling during hyper-fast SSD access
- PASSIVE & AI COOLING – A chipset heatsinks provide passive cooling; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures
- WELL CONNECTED – Network hardware includes a 2.5Gbps LAN controller; Rear ports include 4 x USB 3.2 Gen 1 Type-A (5Gb/s), 4K/60Hz HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost
SPECIFICATION
| Brand | MSI |
| Model Name | PRO B660M-G DDR4 |
| Model Year | 2021 |
| Product Dimensions | 24.38 x 22.1 x 6.35 cm; 740 Grams |
| Batteries | 1 CR2 battery is required. |
| RAM Size | 64 GB |
| Memory Storage Capacity | 64 GB |
| Memory Slots Available | 2 |
| Ram Memory Technology | DDR4 |
| Computer Memory Type | DDR4 SDRAM |
| Processor Socket | LGA 1700 |
| Compatible Processor Types | 12 Gen Intel Core (Alder Lake) |
| Graphics Card Interface | PCI Express 4.0 |
| Chipset Type | Intel B660 |
| Number Of Items | 1 |
| Batteries Included | No |
| Batteries Required | No |
| Battery Cell Composition | Mercury Oxide |
| Manufacturer | MSI COMPUTER |
| Item Weight | 740 g |
